颞下颌关节紊乱病患者关节盘与髁突距离的定量分析研究

孙磊, 戴世锋, 陈裕华, 许新怡, 姜克乐, 李筱文, 李承靖, 吴婷婷

Quantitative analysis of the distance between articular disc and condyle in patients with temporomandibular disorders

SUN Lei, DAI Shifeng, CHEN Yuhua, XU Xinyi, JIANG Kele, LI Xiaowen, LI Chengjing, WU Tingting

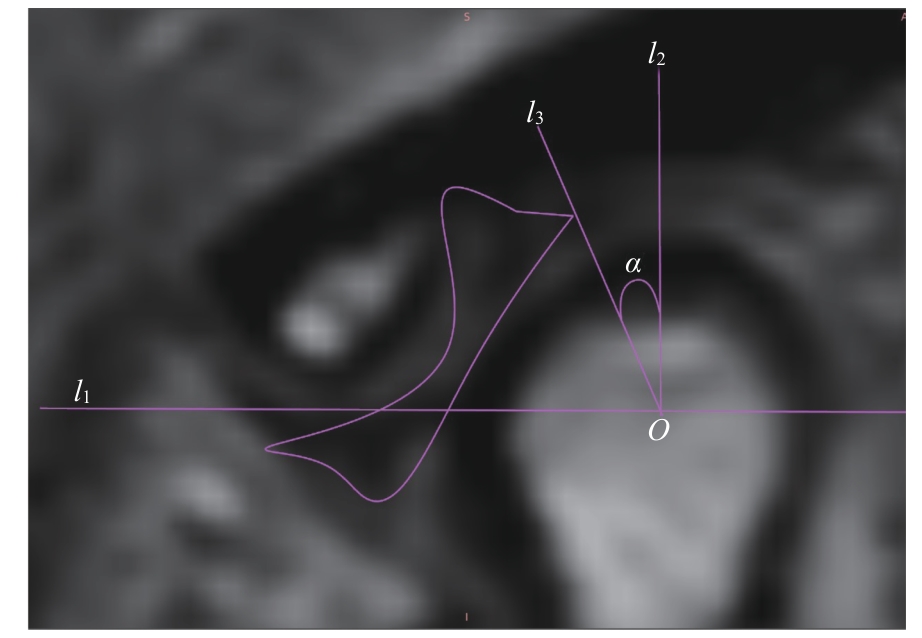

图3 关节盘移位角度的测量 Note： An oblique sagittal PDWI image. l1—the line connecting the articular eminence and the vertex of the posterior tubercle; O—the midpoint of the intersection of line l1 with the condyle; l2—the perpendicular line to l1 through point O; l3—the line connecting the posterior edge of the articular disc with point O; α—the angle between l2 and l3, which is the angle of disc displacement.

Fig 3 Measurement of articular disc displacement angle
