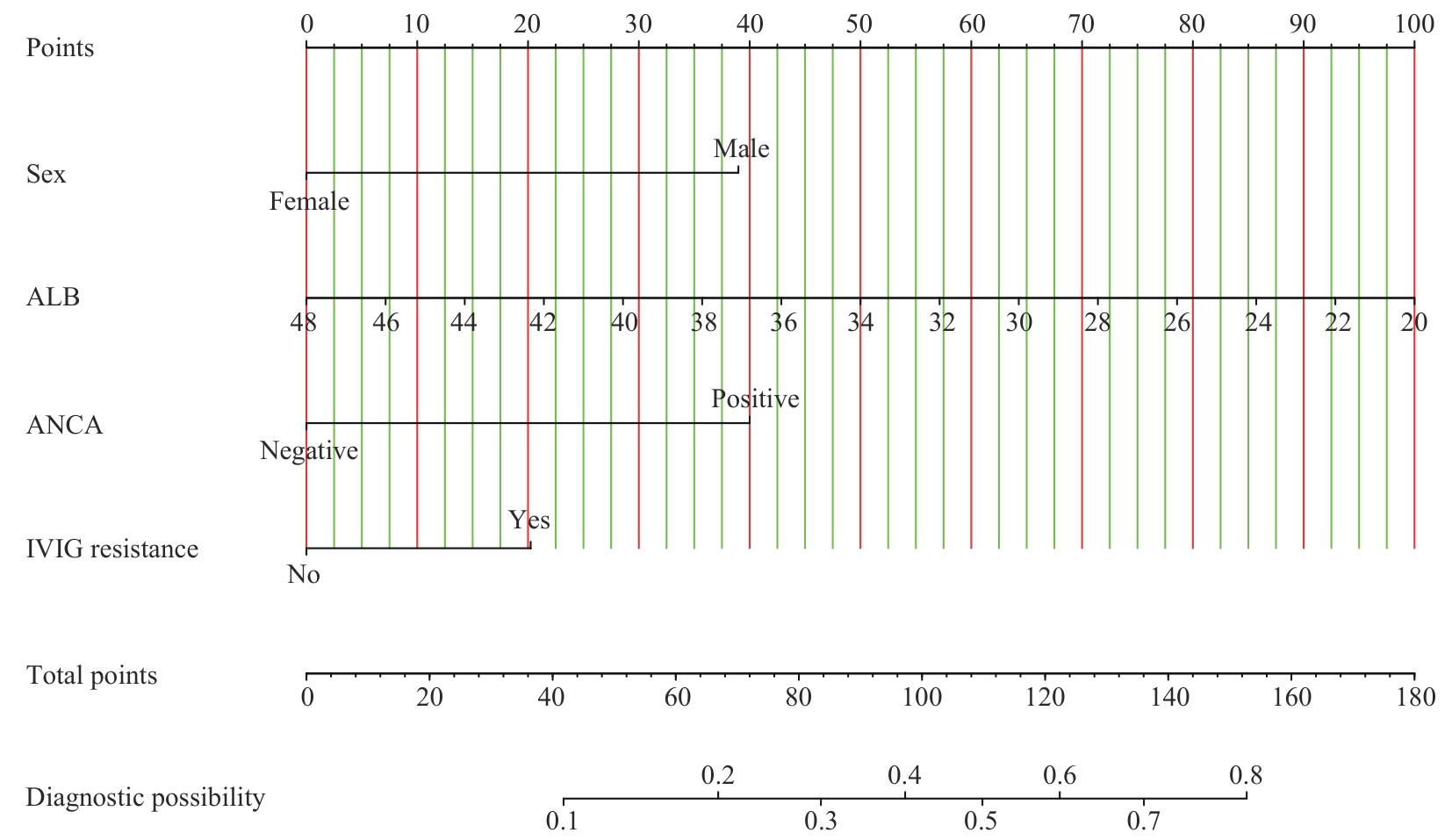

Nomogram for predicting the risk of coronary artery lesions in patients with Kawasaki disease based on anti-neutrophil cytoplasmic antibodies

doi:10.3969/j.issn.1674-8115.2025.04.008

Abstract

Abstract:

Objective ·To evaluate the predictive value of anti-neutrophil cytoplasmic antibodies (ANCA) in Kawasaki disease (KD) complicated with coronary artery lesions (CALs) and to construct a nomogram prediction model. Methods ·A retrospective study was conducted to collect the clinical data of 340 children with KD admitted to Shanghai Children's Medical Center from January 2018 to May 2024. All patients were randomly divided in a 7:3 ratio into a training set (n=237) and a validation set (n=103). Univariate analysis and least absolute shrinkage and selection operator (LASSO) were applied to screen the risk factors of CALs, which were incorporated into multifactorial Logistic regression analysis to develop the nomogram model. The model's discrimination, calibration and clinical practicability were evaluated using the receiver operating characteristic (ROC) curve, calibration curve, Hosmer-Lemeshow goodness-of-fit test, and decision curve analysis (DCA). A new predictive scoring system was obtained by assigning scores to each variable based on the coefficients of the independent variables in the Logistic regression equation, and its predictive efficacy was then compared with that of three commonly used scoring systems, Kobayashi, Egami, and Sano scoring models. Results ·Male, low serum albumin level, ANCA positivity, and intravenous immunoglobulin resistance were risk factors for the development of CALs in children with KD, based on which a nomogram model was constructed. The area under the ROC curve for the nomogram in the training set and validation set were 0.747 (95%CI 0.667‒0.821) and 0.645 (95%CI 0.500‒0.794), respectively, indicating good effectiveness. The model was verified to have good predictive accuracy through the calibration curve and Hosmer-Lemeshow goodness-of-fit test (training set: χ²=5.105, P=0.746; validation set:χ²=13.549, P=0.094). The DCA showed its clinical usefulness. A predictive scoring system for CALs was developed based on the coefficients of the Logistic regression equation, which demonstrated higher sensitivity (58.4%) and specificity (78.7%) compared to the Kobayashi, Egami, and Sano scoring models. Conclusion ·This study developed a new scoring model based on ANCA to effectively predict the risk of CALs in KD patients. The model provides valuable reference for clinicians to identify high-risk patients early, and to formulate personalized treatment plans and management strategies.

Key words: Kawasaki disease, coronary artery lesion, anti-neutrophil cytoplasmic antibody, nomogram, prediction model

CLC Number:

R725.4

CHEN Rong, ZHANG Meng, ZHU Diqi, GUO Ying, SHEN Jie. Nomogram for predicting the risk of coronary artery lesions in patients with Kawasaki disease based on anti-neutrophil cytoplasmic antibodies[J]. Journal of Shanghai Jiao Tong University (Medical Science), 2025, 45(4): 459-467.

Figures/Tables 10

TrendMD

References 32

1	中华医学会儿科学分会心血管学组, 中华医学会儿科学分会风湿学组,中华医学会儿科学分会免疫学组,等. 川崎病诊断和急性期治疗专家共识[J]. 中华儿科杂志,2022, 60(1): 6-13.
	The Subspecialty Group of Cardiology, the Society of Pediatrics, Chinese Medical Association; the Subspecialty Group of Rheumatology, the Society of Pediatrics, Chinese Medical Association; the Subspecialty Group of Immunology, the Society of Pediatrics, Chinese Medical Association, et al. The expert consensus on diagnosis and acute-phase treatment of Kawasaki disease[J]. Chinese Journal of Pediatrics, 2022, 60(1): 6-13.
2	de GRAEFF N, GROOT N, OZEN S, et al. European consensus-based recommendations for the diagnosis and treatment of Kawasaki disease: the SHARE initiative[J]. Rheumatology (Oxford), 2019, 58(4): 672-682.
3	JCS Joint Working Group. Guidelines for diagnosis and management of cardiovascular sequelae in Kawasaki disease (JCS 2013), digest version[J]. Circ J, 2014, 78(10): 2521-2562.
4	Newburger J W, Takahashi M, Burns J C. Kawasaki disease[J]. J Am Coll Cardiol, 2016, 67(14): 1738-1749.
5	MCCRINDLE B W, ROWLEY A H, NEWBURGER J W, et al. Diagnosis, treatment, and long-term management of Kawasaki disease: a scientific statement for health professionals from the American heart association[J]. Circulation, 2017, 135(17): e927-e999.
6	BROGAN P, BURNS J C, CORNISH J, et al. Lifetime cardiovascular management of patients with previous Kawasaki disease[J]. Heart, 2020, 106(6): 411-420.
7	SCHULTE-PELKUM J, RADICE A, NORMAN G L, et al. Novel clinical and diagnostic aspects of antineutrophil cytoplasmic antibodies[J]. J Immunol Res, 2014, 2014: 185416.
8	中华医学会儿科学分会心血管学组, 中华医学会儿科学分会免疫学组. 川崎病冠状动脉病变的临床处理建议[J]. 中华儿科杂志, 2012, 50(10): 746-749.
	The Subspecialty Group of Cardiology, the Society of Pediatrics, Chinese Medical Association; the Subspecialty Group of Rheumatology, the Society of Pediatrics, Chinese Medical Association. Recommendations for clinical management of Kawasaki disease with coronary arterial lesions[J]. Chinese Journal of Pediatrics, 2012, 50(10): 746-749.
9	KOBAYASHI T, INOUE Y, TAKEUCHI K, et al. Prediction of intravenous immunoglobulin unresponsiveness in patients with Kawasaki disease[J]. Circulation, 2006, 113(22): 2606-2612.
10	EGAMI K, MUTA H, ISHII M, et al. Prediction of resistance to intravenous immunoglobulin treatment in patients with Kawasaki disease[J]. J Pediatr, 2006, 149(2): 237-240.
11	SANO T, KUROTOBI S, MATSUZAKI K, et al. Prediction of non-responsiveness to standard high-dose gamma-globulin therapy in patients with acute Kawasaki disease before starting initial treatment[J]. Eur J Pediatr, 2007, 166(2): 131-137.
12	PILANIA R K, BHATTARAI D, SINGH S. Controversies in diagnosis and management of Kawasaki disease[J]. World J Clin Pediatr, 2018, 7(1): 27-35.
13	TIAN J, LV H T, AN X J, et al. Endothelial microparticles induce vascular endothelial cell injury in children with Kawasaki disease[J]. Eur Rev Med Pharmacol Sci, 2016, 20(9): 1814-1818.
14	LINDQUIST M E, HICAR M D. B cells and antibodies in Kawasaki disease[J]. Int J Mol Sci, 2019, 20(8): E1834.
15	TAKAHASHI K, OHARASEKI T, YOKOUCHI Y. Pathogenesis of Kawasaki disease[J]. Clin Exp Immunol, 2011, 164(Supplement 1): 20-22.
16	del PRINCIPE D, PIETRAFORTE D, GAMBARDELLA L, et al. Pathogenetic determinants in Kawasaki disease: the haematological point of view[J]. J Cell Mol Med, 2017, 21(4): 632-639.
17	马乐, 杜忠东. 川崎病血管内皮细胞损伤机制的研究进展[J]. 中华儿科杂志, 2016, 54(2): 158-160.
	MA L, DU Z D. Advances in the pathogenesis of vascular endothelial cells injury in Kawasaki disease[J]. Chinese Journal of Pediatrics, 2016, 54(2): 158-160.
18	中国医师协会风湿免疫科医师分会自身抗体检测专业委员会. 抗中性粒细胞胞浆抗体检测的临床应用专家共识[J].中华检验医学杂志, 2018, 41(9): 644-650.
	The Committee of the Autoantibodies Detection of Rheumatology and Immunology Physicians Committee of Chinese Medical Doctor Association. Experts consensus on the clinical application of antineutrophil cytoplasmic antibodies detection[J].Chinese Journal of Laboratory Medicine, 2018,41(9):644-650.
19	LIBERAL R, MIELI-VERGANI G, VERGANI D. Clinical significance of autoantibodies in autoimmune hepatitis[J]. J Autoimmun, 2013, 46: 17-24.
20	江志贵, 刘玲, 杨翠艳, 等. 抗中性粒细胞抗体在川崎病诊断中的价值[J]. 中国当代儿科杂志, 2012, 14(1): 45-47.
	JIANG Z G, LIU L, YANG C Y, et al. Value of anti-neutrophil cytoplasmic antibody in diagnosis of Kawasaki disease[J].Chinese Journal of Contemporary Pediatrics, 2012, 14(1): 45-47.
21	刘坦, 孟晓峰, 杜世杰. 三种方法检测抗中性粒细胞胞浆抗体的比较分析[J]. 国际医药卫生导报, 2018, 24(4): 590-592.
	LIU T, MENG X F, DU S J. Three methods for detecting antineutrophil cytoplasmic antibodies[J].International Medicine and Health Guildance News, 2018, 24(4): 590-592.
22	van DER MOLEN R G, HAMANN D, JACOBS J F, et al. Anti-SSA antibodies are present in immunoglobulin preparations[J]. Transfusion, 2015, 55(4): 832-837.
23	BRIGHT P D, SMITH L, USHER J, et al. False interpretation of diagnostic serology tests for patients treated with pooled human immunoglobulin G infusions: a trap for the unwary[J]. Clin Med, 2015, 15(2): 125-129.
24	赵建美, 王晓华. 川崎病患儿血清抗内皮细胞抗体和抗中性粒细胞胞浆抗体检测的临床意义[J]. 中国当代儿科杂志, 2014, 16(7): 740-744.
	ZHAO J M, WANG X H. Clinical significance of anti-neutrophil cytoplasmic antibodies and anti-endothelial cell antibodies in children with Kawasaki disease[J].Chinese Journal of Contemporary Pediatrics, 2014, 16(7): 740-744.
25	RUAN Y, YE B, ZHAO X. Clinical characteristics of Kawasaki syndrome and the risk factors for coronary artery lesions in China[J]. Pediatr Infect Dis J, 2013, 32(10): e397-402.
26	PIAO J H, JIN L H, LV J, et al. Epidemiological investigation of Kawasaki disease in Jilin Province of China from 2000 to 2008[J]. Cardiol Young, 2010, 20(4): 426-432.
27	TAKEKOSHI N, KITANO N, TAKEUCHI T, et al. Analysis of age, sex, lack of response to intravenous immunoglobulin, and development of coronary artery abnormalities in children with Kawasaki disease in Japan[J]. JAMA Netw Open, 2022, 5(6): e2216642.
28	KAYAPINAR O, OZDE C, KAYA A. Relationship between the reciprocal change in inflammation-related biomarkers (fibrinogen-to-albumin and hsCRP-to-albumin ratios) and the presence and severity of coronary slow flow[J]. Clin Appl Thromb Hemost, 2019, 25: 1076029619835383.
29	张玉坤, 黄春华, 杨蕾, 等. 血清白蛋白、血沉、血小板/淋巴细胞比值、中性粒细胞/淋巴细胞比值与川崎病患儿冠脉病变程度的关系[J]. 中国医师杂志, 2023, 25(1): 23-27.
	ZHANG Y K, HUANG C H, YANG L, et al. The relationship between albumin, erythrocyte sedimentation rate, platelet/lymphocyte ratio, neutrophil/lymphocyte ratio and the degree of coronary artery disease in children with Kawasaki disease[J]. Journal of Chinese Physician, 2023, 25(1): 23-27.
30	ARQUES S. Human serum albumin in cardiovascular diseases[J]. Eur J Intern Med, 2018, 52: 8-12.
31	FUKAZAWA R, KOBAYASHI J, AYUSAWA M, et al. JCS/JSCS 2020 guideline on diagnosis and management of cardiovascular sequelae in Kawasaki disease[J]. Circ J, 2020, 84(8): 1348-1407.
32	XIE T, WANG Y, FU S, et al. Predictors for intravenous immunoglobulin resistance and coronary artery lesions in Kawasaki disease[J]. Pediatr Rheumatol Online J, 2017, 15(1): 17.

Variable	Training set (n=237)			Validation set (n=103)				P value^①
Variable	CAL (n=58)	NCAL (n=179)	P value		CAL (n=19)	NCAL (n=84)	P value	P value^①
Gender/n(%)			<0.001				0.682	0.897
Male	45 (77.59)	85 (47.49)		12 (63.16)		46 (54.76)
Female	13 (22.41)	94 (52.51)		7 (36.84)		38 (45.24)
Age/month	30.00 (12.25,47.50)	33.00 (18.00,56.50)	0.148	29.00 (15.00,49.50)		31.00 (18.75,52.50)	0.702	0.781
Fever duration before IVIG/n(%)			0.228				0.316	0.941
<5 d	13 (22.41)	26 (14.53)		5 (26.32)		13 (15.48)
≥5 d	45 (77.59)	153 (85.47)		14 (73.68)		71 (84.52)
CRP/(mg·L^-1)	64.80 (37.95,103.03)	63.40 (34.90,95.10)	0.601	81.70 (51.60,109.70)		61.60 (39.78,101.92)	0.161	0.420
NEUT%/%	66.26 (55.21,76.89)	65.70 (53.70,76.78)	0.895	68.21 (55.82,80.45)		67.32 (52.11,74.67)	0.280	0.933
HGB/(g·L^-1)	107.00 (101.00,115.00)	110.00 (103.00,117.00)	0.209	107.00 (101.00,112.50)		110.50 (102.75,116.00)	0.139	0.462
PLT/(×10⁹·L^-1)	332.00 (227.50,452.50)	336.00 (259.00,416.00)	0.702	253.00 (219.50,338.00)		329.50 (262.75,417.00)	0.038	0.170
Na⁺/(mmol·L^-1)	135.60 (134.00,137.25)	137.00 (135.00,138.65)	0.010	136.00 (133.80,137.55)		136.55 (135.00,138.15)	0.190	0.922
ESR/(mm·h^-1)	65.50 (44.75,75.00)	65.00 (48.00,81.00)	0.531	66.00 (54.50,74.00)		71.00 (54.50,87.00)	0.655	0.120
Ferr/(ng·mL^-1)	171.25 (110.67,270.36)	175.52 (130.20,241.20)	0.712	252.60 (152.65,291.90)		167.55 (136.88,272.72)	0.241	0.177
ALT/(IU·L^-1)	27.50 (18.00,48.75)	24.00 (15.50,59.50)	0.356	30.00 (20.00,134.50)		28.00 (18.75,60.00)	0.540	0.215
AST/(IU·L^-1)	33.00 (27.00,47.75)	33.00 (28.00,46.50)	0.731	33.00 (28.00,70.00)		34.00 (26.00,42.50)	0.507	0.579
ALB/(g·L^-1)	34.62±4.36	3 6.66±3.98	0.002	35.22±2.87		36.04±4.59	0.326	0.586
TBIL/(μmol·L^-1)	8.80 (6.12,12.15)	8.20 (5.60,11.45)	0.352	9.10 (4.85,24.05)		8.75 (6.65,11.72)	0.953	0.264
NT-proBNP/(pg·mL^-1)	652.00 (185.50,2460.25)	302.00 (104.00,984.00)	0.014	291.00 (94.50,1528.50)		406.00 (186.50,1189.75)	0.792	0.691
IL-6/(pg·mL^-1)	74.51 (25.09,246.56)	71.00 (33.11,169.65)	0.402	74.39 (35.95,150.71)		80.64 (24.84,167.78)	0.875	0.905
Count of CD3⁺CD4⁺/n	1 173.84 (694.43,1 779.17)	1 183.81 (635.24,2 016.62)	0.857	862.66 (396.05,1 269.99)		1 110.01 (670.87,2 006.53)	0.208	0.724
ANA/n(%)			0.934				0.547	1.000
Positive	12 (20.69)	40 (22.35)		5 (26.32)		17 (20.24)
Negative	46 (79.31)	139 (77.65)		14 (73.68)		67 (79.76)
ANCA/n(%)			0.007				0.002	0.946
Positive	8 (13.79)	6 (3.35)		5 (36.32)		2 (2.38)
Negative	50 (86.21)	173 (96.65)		14 (73.68)		82 (97.62)
IVIG resistance/n(%)			0.008				0.031	0.846
Yes	14 (24.14)	17 (9.50)		6 (31.58)		9 (10.71)
No	44 (75.86)	162 (90.50)		13 (68.42)		75 (89.29)

Variable	Training set (n=237)			Validation set (n=103)				P value^①
Variable	CAL (n=58)	NCAL (n=179)	P value		CAL (n=19)	NCAL (n=84)	P value	P value^①
Gender/n(%)			<0.001				0.682	0.897
Male	45 (77.59)	85 (47.49)		12 (63.16)		46 (54.76)
Female	13 (22.41)	94 (52.51)		7 (36.84)		38 (45.24)
Age/month	30.00 (12.25,47.50)	33.00 (18.00,56.50)	0.148	29.00 (15.00,49.50)		31.00 (18.75,52.50)	0.702	0.781
Fever duration before IVIG/n(%)			0.228				0.316	0.941
<5 d	13 (22.41)	26 (14.53)		5 (26.32)		13 (15.48)
≥5 d	45 (77.59)	153 (85.47)		14 (73.68)		71 (84.52)
CRP/(mg·L^-1)	64.80 (37.95,103.03)	63.40 (34.90,95.10)	0.601	81.70 (51.60,109.70)		61.60 (39.78,101.92)	0.161	0.420
NEUT%/%	66.26 (55.21,76.89)	65.70 (53.70,76.78)	0.895	68.21 (55.82,80.45)		67.32 (52.11,74.67)	0.280	0.933
HGB/(g·L^-1)	107.00 (101.00,115.00)	110.00 (103.00,117.00)	0.209	107.00 (101.00,112.50)		110.50 (102.75,116.00)	0.139	0.462
PLT/(×10⁹·L^-1)	332.00 (227.50,452.50)	336.00 (259.00,416.00)	0.702	253.00 (219.50,338.00)		329.50 (262.75,417.00)	0.038	0.170
Na⁺/(mmol·L^-1)	135.60 (134.00,137.25)	137.00 (135.00,138.65)	0.010	136.00 (133.80,137.55)		136.55 (135.00,138.15)	0.190	0.922
ESR/(mm·h^-1)	65.50 (44.75,75.00)	65.00 (48.00,81.00)	0.531	66.00 (54.50,74.00)		71.00 (54.50,87.00)	0.655	0.120
Ferr/(ng·mL^-1)	171.25 (110.67,270.36)	175.52 (130.20,241.20)	0.712	252.60 (152.65,291.90)		167.55 (136.88,272.72)	0.241	0.177
ALT/(IU·L^-1)	27.50 (18.00,48.75)	24.00 (15.50,59.50)	0.356	30.00 (20.00,134.50)		28.00 (18.75,60.00)	0.540	0.215
AST/(IU·L^-1)	33.00 (27.00,47.75)	33.00 (28.00,46.50)	0.731	33.00 (28.00,70.00)		34.00 (26.00,42.50)	0.507	0.579
ALB/(g·L^-1)	34.62±4.36	3 6.66±3.98	0.002	35.22±2.87		36.04±4.59	0.326	0.586
TBIL/(μmol·L^-1)	8.80 (6.12,12.15)	8.20 (5.60,11.45)	0.352	9.10 (4.85,24.05)		8.75 (6.65,11.72)	0.953	0.264
NT-proBNP/(pg·mL^-1)	652.00 (185.50,2460.25)	302.00 (104.00,984.00)	0.014	291.00 (94.50,1528.50)		406.00 (186.50,1189.75)	0.792	0.691
IL-6/(pg·mL^-1)	74.51 (25.09,246.56)	71.00 (33.11,169.65)	0.402	74.39 (35.95,150.71)		80.64 (24.84,167.78)	0.875	0.905
Count of CD3⁺CD4⁺/n	1 173.84 (694.43,1 779.17)	1 183.81 (635.24,2 016.62)	0.857	862.66 (396.05,1 269.99)		1 110.01 (670.87,2 006.53)	0.208	0.724
ANA/n(%)			0.934				0.547	1.000
Positive	12 (20.69)	40 (22.35)		5 (26.32)		17 (20.24)
Negative	46 (79.31)	139 (77.65)		14 (73.68)		67 (79.76)
ANCA/n(%)			0.007				0.002	0.946
Positive	8 (13.79)	6 (3.35)		5 (36.32)		2 (2.38)
Negative	50 (86.21)	173 (96.65)		14 (73.68)		82 (97.62)
IVIG resistance/n(%)			0.008				0.031	0.846
Yes	14 (24.14)	17 (9.50)		6 (31.58)		9 (10.71)
No	44 (75.86)	162 (90.50)		13 (68.42)		75 (89.29)

Variable	B	SE	P value	OR	95%CI
Male	-1.259	0.362	0.001	0.283	0.135‒0.564
ALB	-0.115	0.041	0.005	0.891	0.820‒0.964
ANCA	1.292	0.620	0.037	3.639	1.078‒12.740
IVIG resistance	0.653	0.437	0.135	1.922	0.800‒4.496

Variable	B	SE	P value	OR	95%CI
Male	-1.259	0.362	0.001	0.283	0.135‒0.564
ALB	-0.115	0.041	0.005	0.891	0.820‒0.964
ANCA	1.292	0.620	0.037	3.639	1.078‒12.740
IVIG resistance	0.653	0.437	0.135	1.922	0.800‒4.496

Variable	B	SE	P value	OR	95%CI	Score
Male	-0.972	0.299	0.001	0.378	0.206‒0.670	5
ALB<35 g·L^-1	0.687	0.279	0.014	1.986	1.149‒3.441	3
ANCA positivity	1.550	0.507	0.002	4.711	1.758‒13.140	8
IVIG resistance	0.792	0.365	0.030	2.208	1.064‒4.481	4
