Analysis of clinical characteristics of three patients with arrhythmogenic cardiomyopathy carrying novel pathogenic PKP2 variants

doi:10.3969/j.issn.1674-8115.2026.07.011

Abstract

Abstract:

Objective ·To report newly discovered pathogenic variants of the PKP2 gene in the Chinese population and analyze their association with the clinical phenotype of arrhythmogenic cardiomyopathy (ACM). Methods ·Clinical data, including genetic test results and imaging features, were collected from 251 Chinese patients with unexplained cardiomyopathy. All detected rare variants were analyzed by whole-exome sequencing and confirmed by Sanger sequencing. The clinical phenotypes of patients carrying PKP2 variants were analyzed. Results ·Eight patients were diagnosed with arrhythmogenic cardiomyopathy, among whom 3 (37.5%) carried novel PKP2 variants in the Chinese population. Among the three variants, the missense variant c.1256T>C (p.Leu419Ser) was associated with left ventricular involvement, the missense variant c.2264T>C (p.Leu755Ser) was associated with right ventricular involvement, and the splice-site variant c.2167+1G>C was associated with biventricular involvement and increased susceptibility to ventricular tachycardia. All three patients presented with arrhythmias, and the mean age at disease onset was (23.3±10.5) years. Conclusion ·The novel pathogenic PKP2 variants identified in Chinese population expand the variant spectrum of the PKP2 gene. Key differences in ventricular involvement patterns (univentricular or biventricular) and susceptibility to ventricular tachycardia are revealed between gain-of-function (missense variants) and loss-of-function (splicing variant) mutations of the PKP2 gene.

Key words: PKP2, arrhythmogenic cardiomyopathy (ACM), genotype, clinical phenotype

CLC Number:

R542.2

Ni Luyan, Wu Chen, Tao Zhengyu, Wang Xiaoning, Zhang Zhixuan, Dong Jiawei, Jiang Meng. Analysis of clinical characteristics of three patients with arrhythmogenic cardiomyopathy carrying novel pathogenic PKP2 variants[J]. Journal of Shanghai Jiao Tong University (Medical Science), 2026, 46(7): 928-937.

Figures/Tables 10

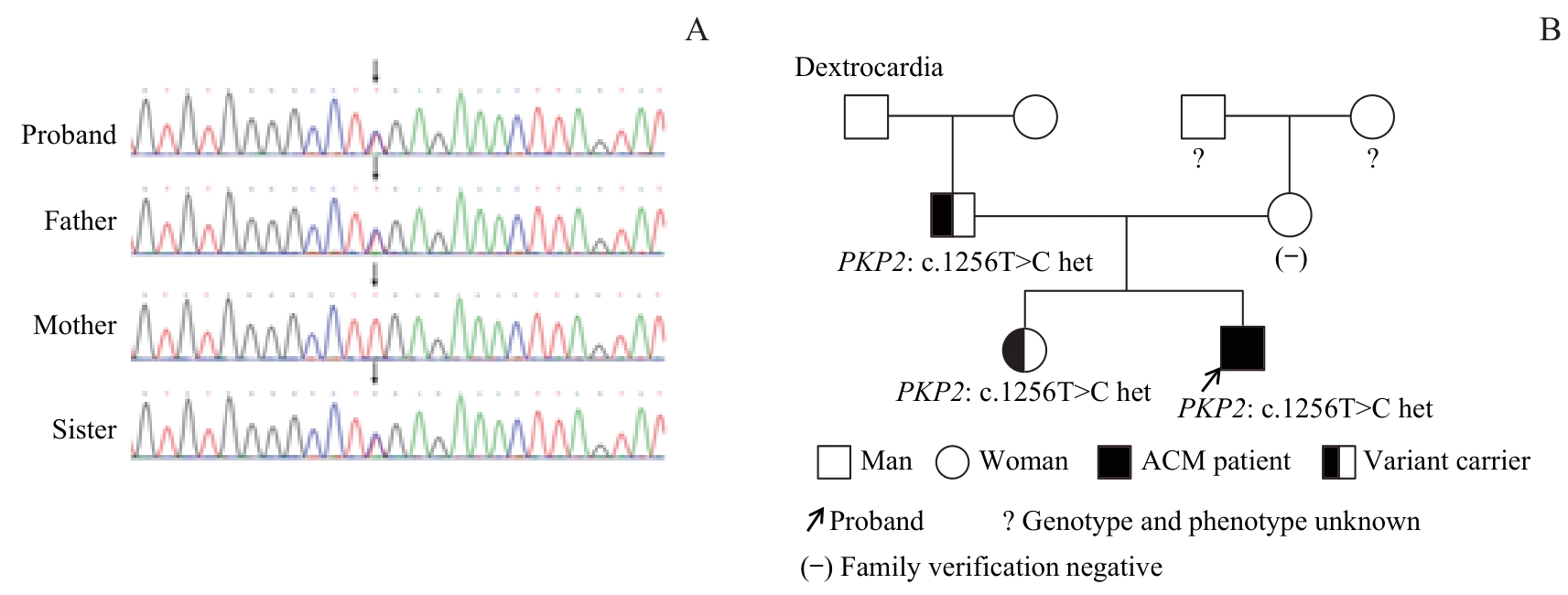

Fig 1 Sanger sequencing results (A) and pedigree chart (B) of Case 1

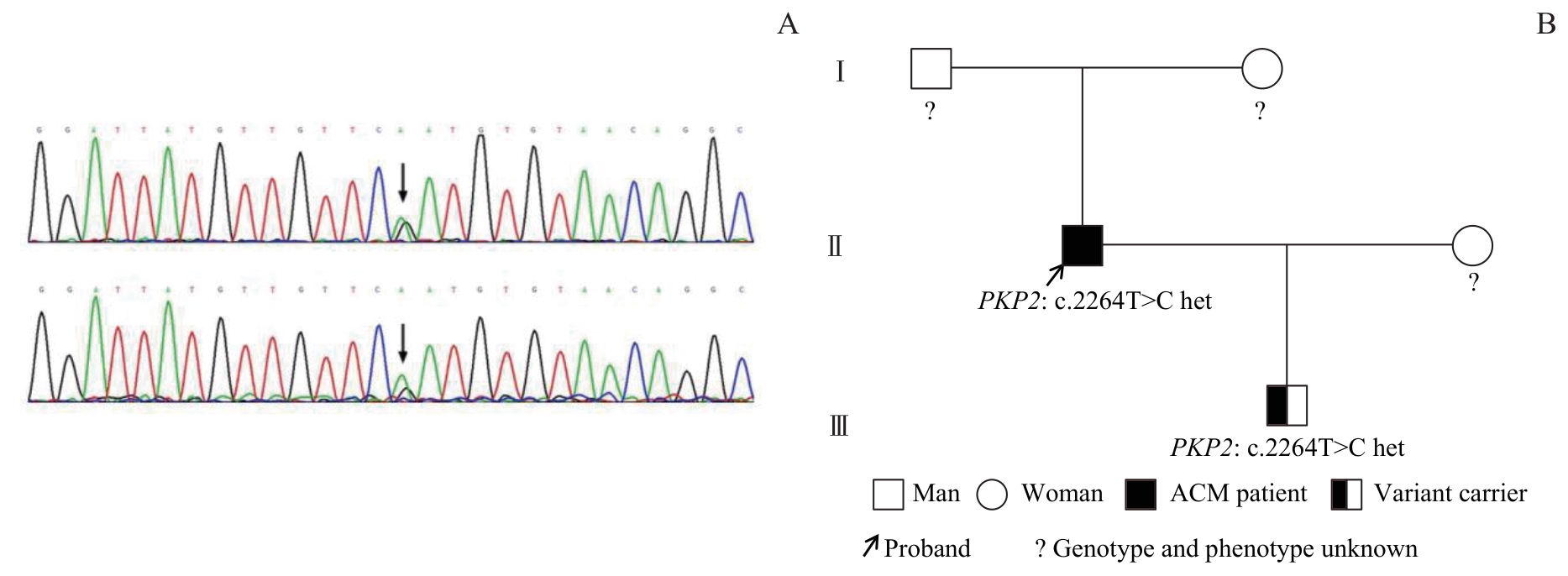

Fig 2 Sanger sequencing results (A) and pedigree chart (B) of Case 2

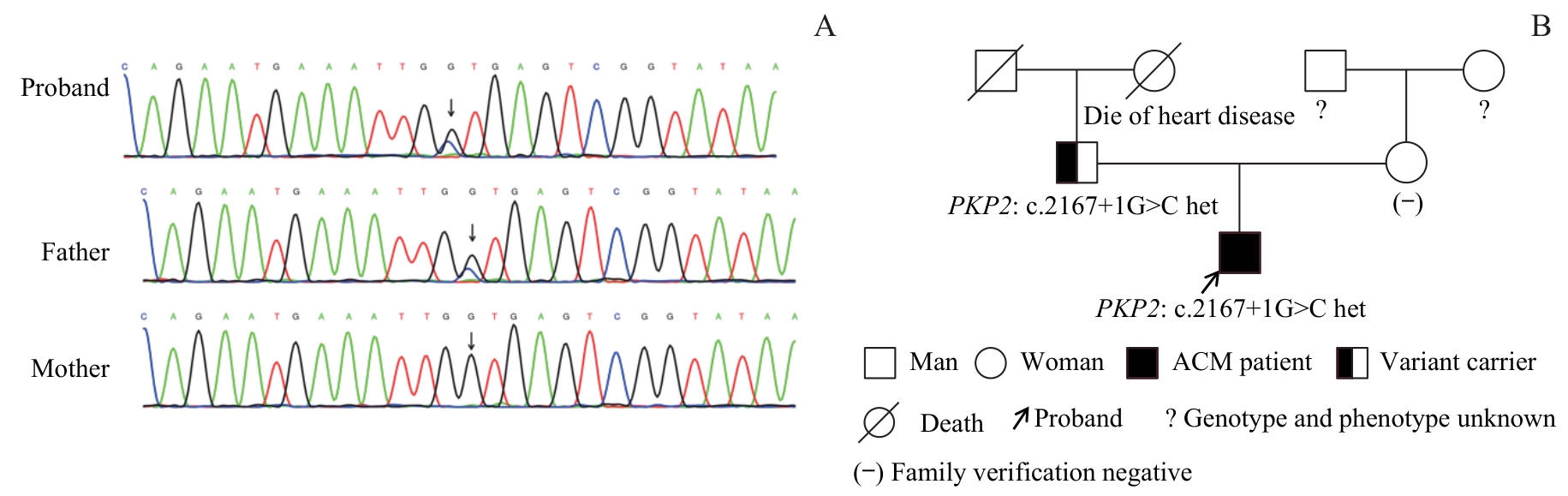

Fig 3 Sanger sequencing results (A) and pedigree chart (B) of Case 3

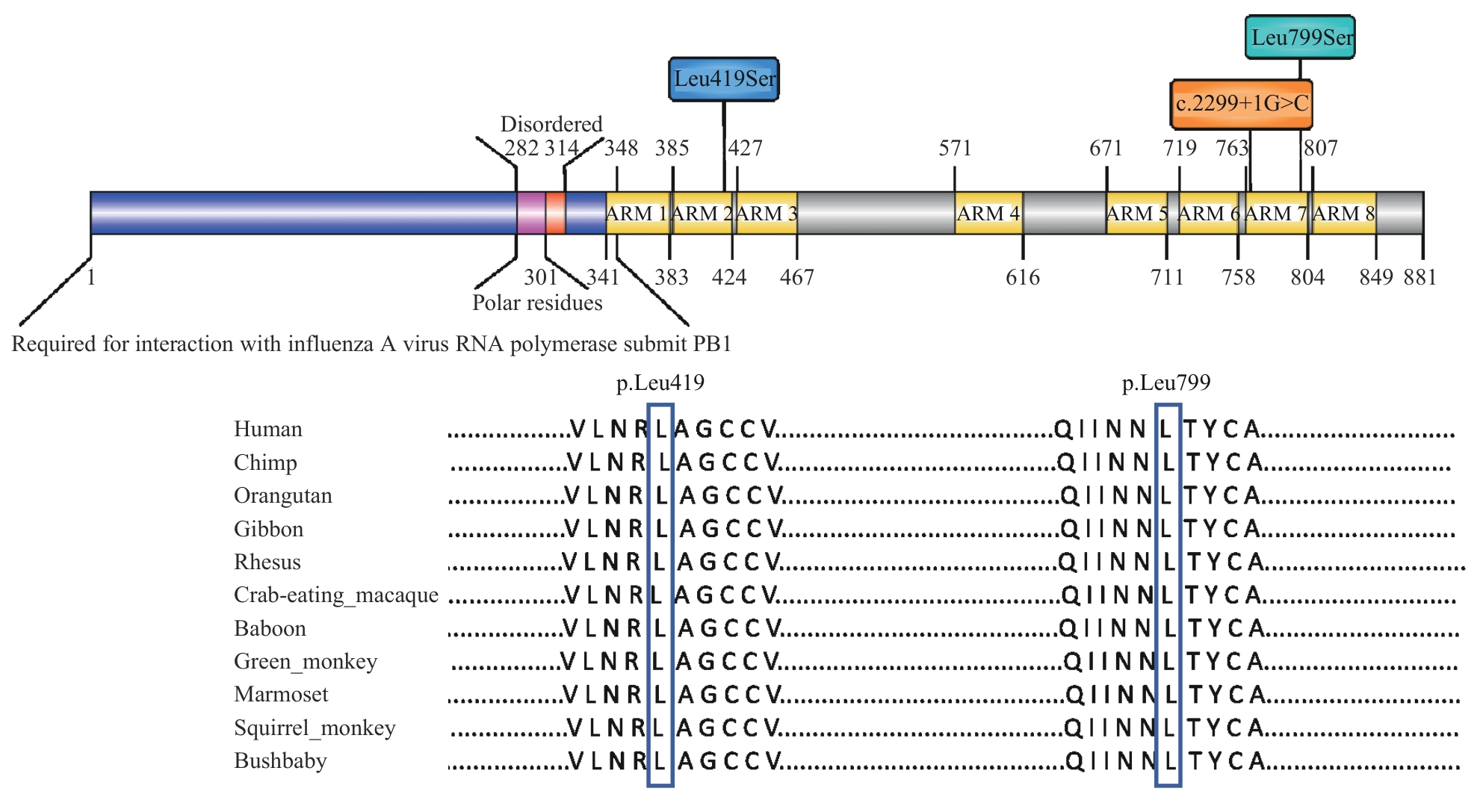

Fig 4 Species conservation analysis of missense variants

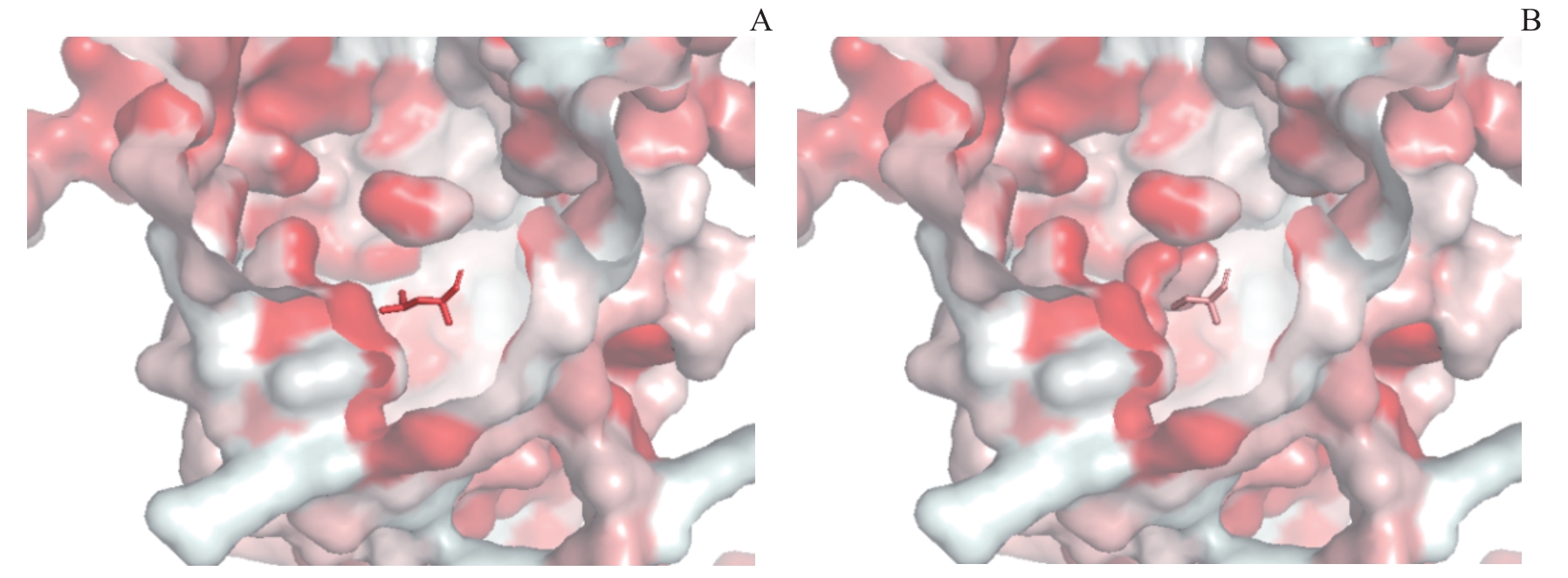

Fig 5 Hydrophobicity of amino acids in the wild-type (A) and p.Leu419Ser-variation (B) PKP2 gene

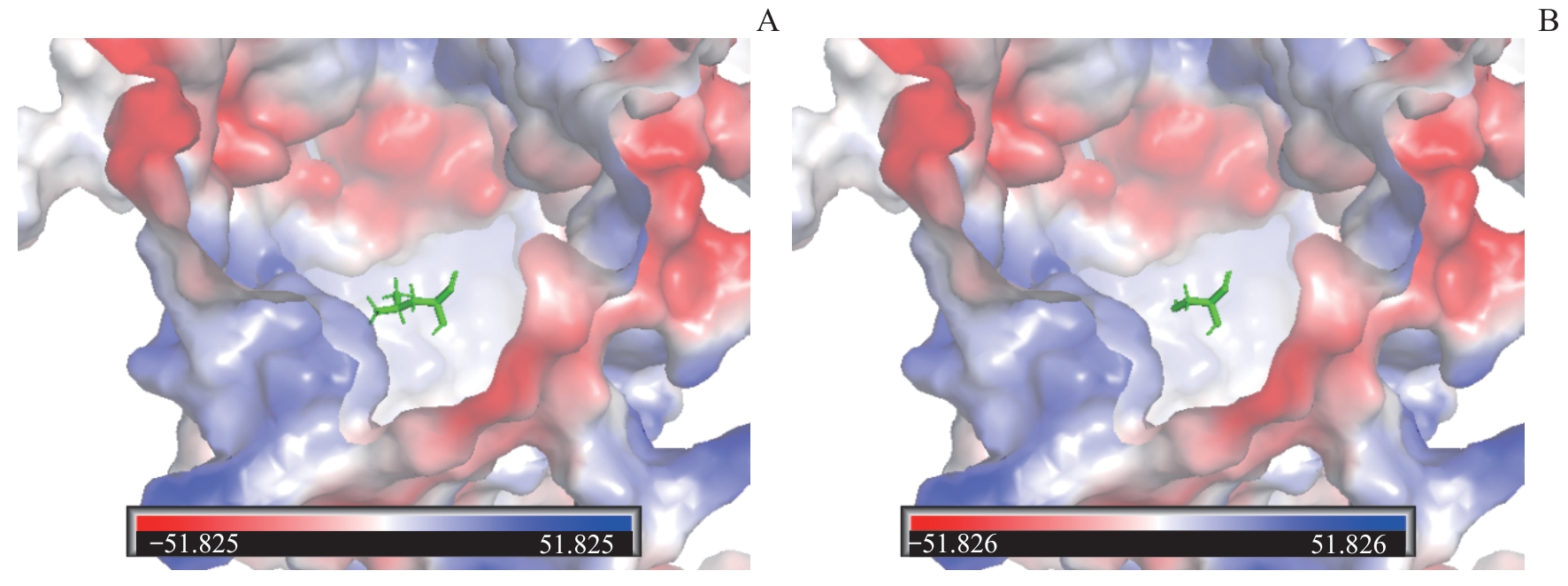

Fig 6 Electrostatic potentials of the wild-type (A) and p.Leu419Ser-variation (B) PKP2 gene

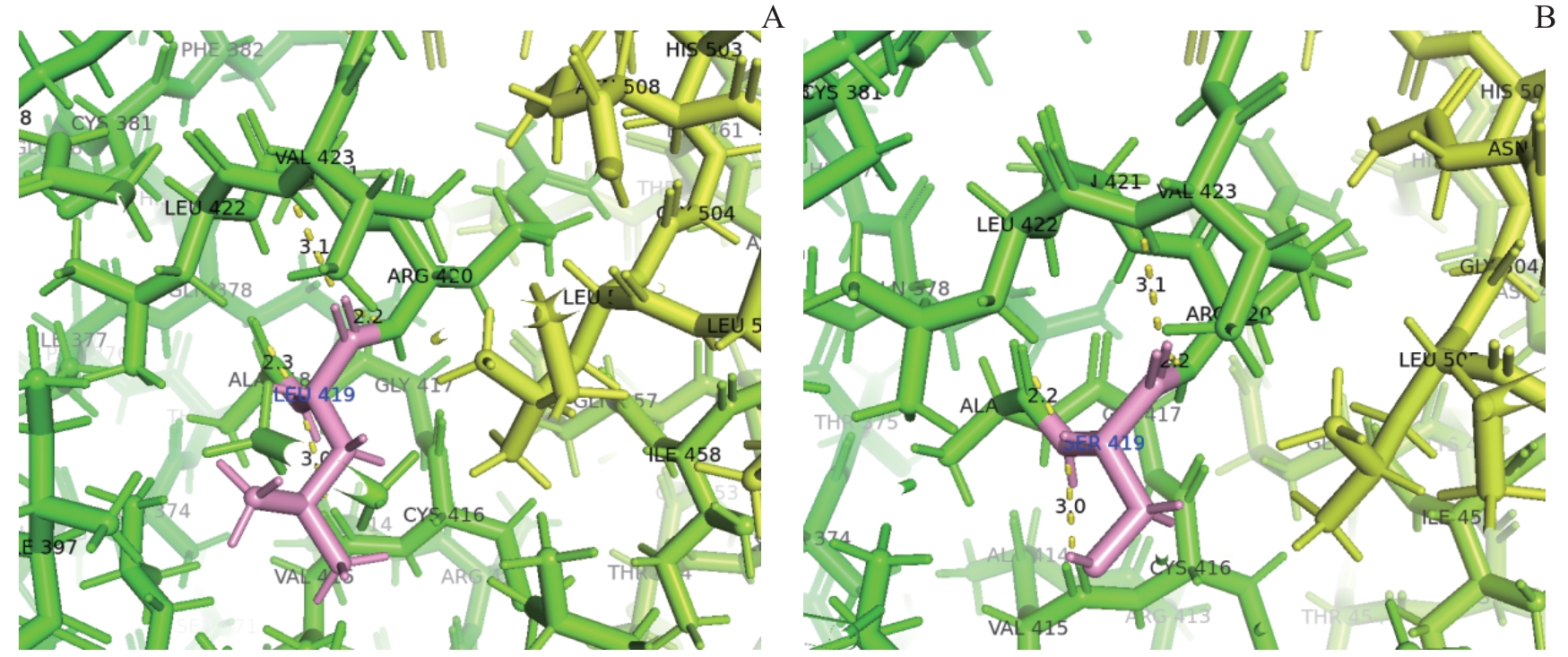

Fig 7 Hydrogen bonds of amino acid at position 419 in the wild-type (A) and p.Leu419Ser-variation (B) PKP2 gene

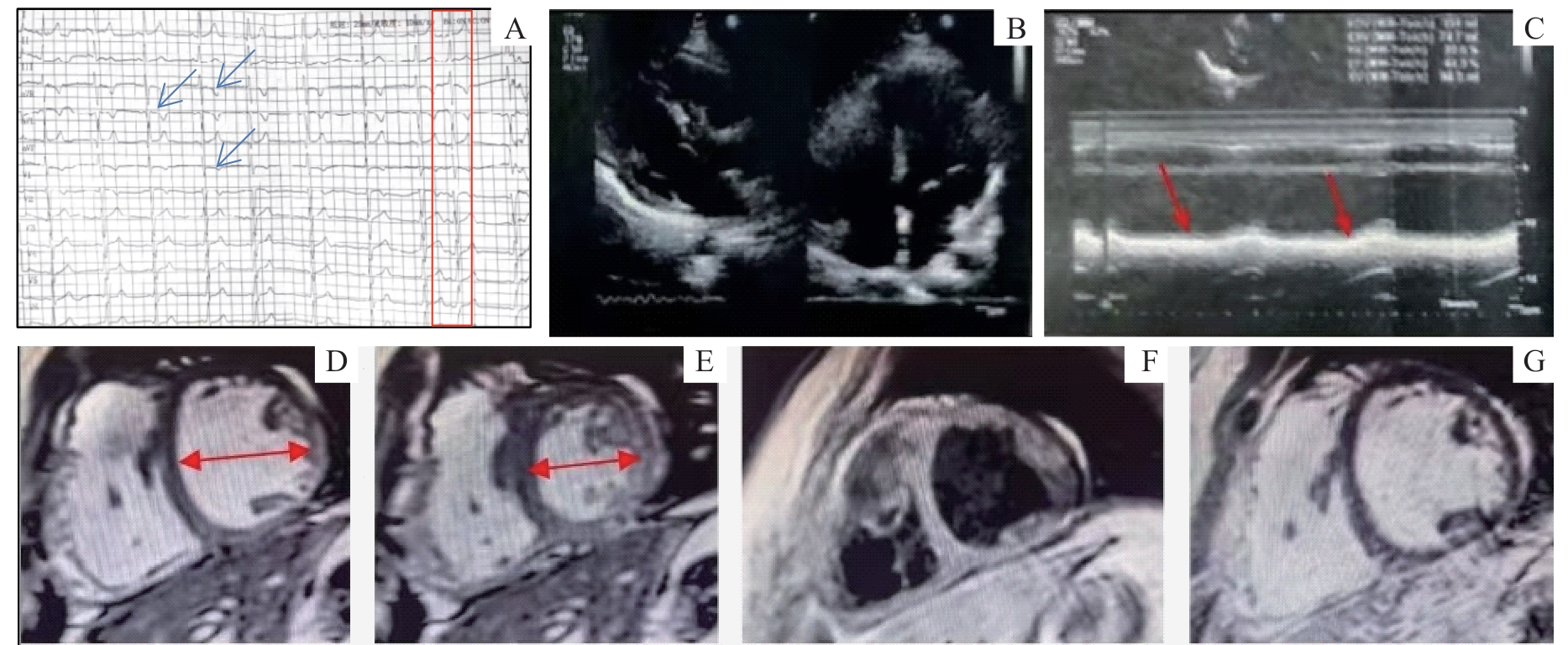

Fig 8 Electrocardiogram(A), UCG (B/C), and CMR(D-G) findings in Case 1

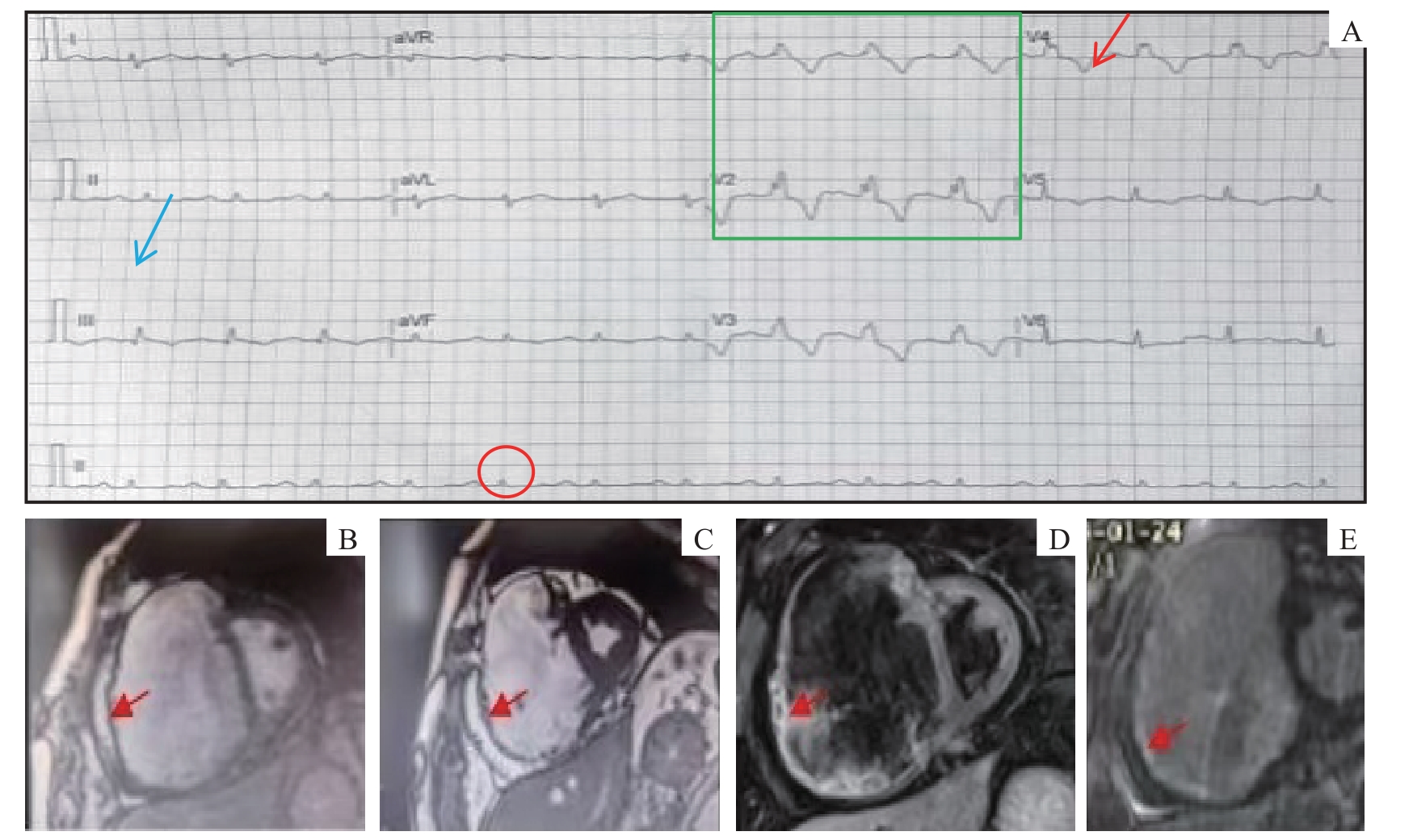

Fig 9 Electrocardiogram (A) and CMR (B-E) findings in Case 2

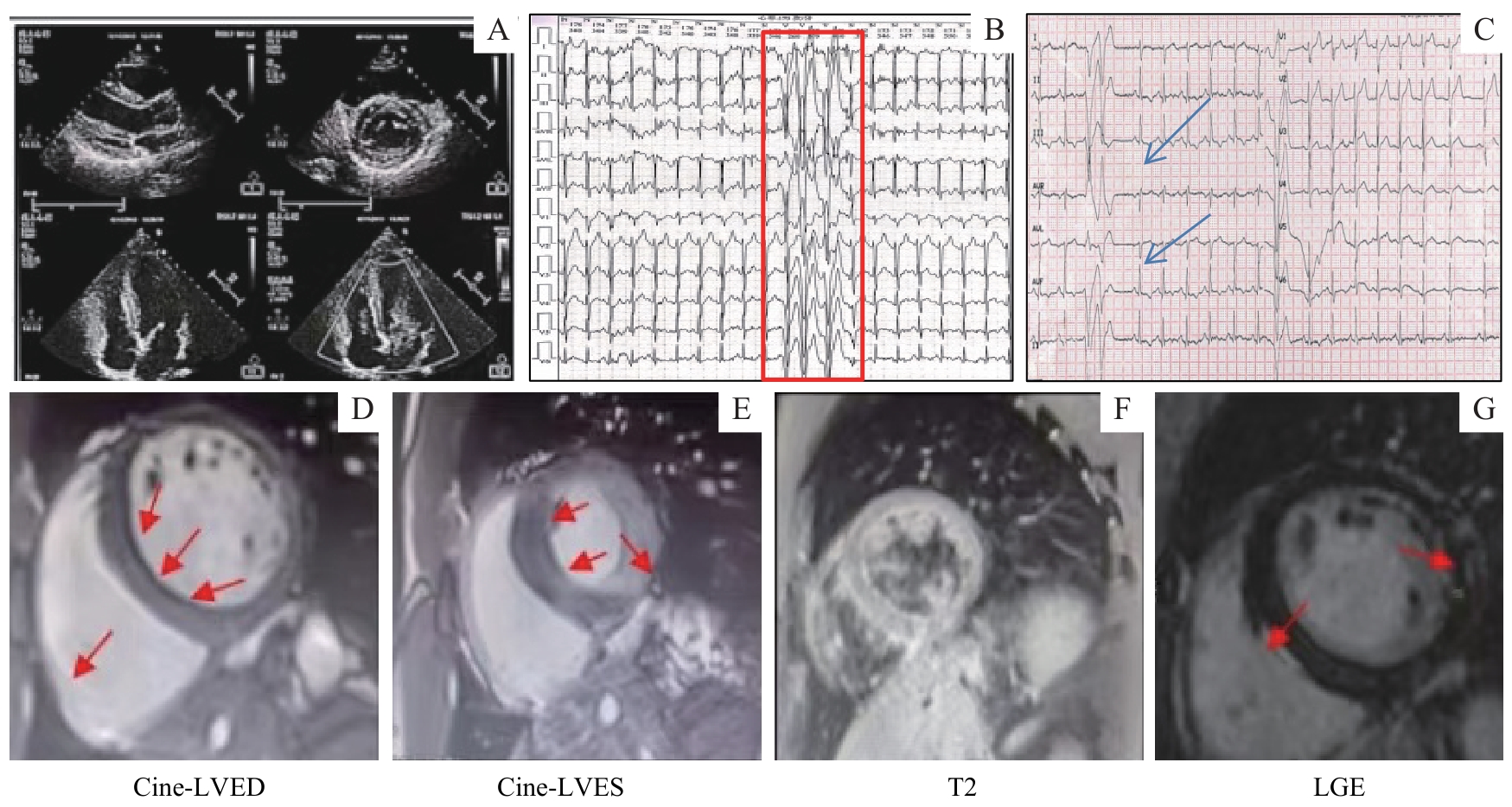

Fig 10 UCG (A), electrocardiogram (B/C), and CMR (D-G) findings in Case 3

TrendMD

References 25

[1]	Basso C, Corrado D, Marcus F I, et al. Arrhythmogenic right ventricular cardiomyopathy[J]. Lancet, 2009, 373(9671): 1289-1300.
[2]	卢聪, 王倩. 致心律失常右室心肌病的诊治进展[J]. 临床内科杂志, 2023, 40(3): 207-209.
	Lu C, Wang Q. Progress in diagnosis and treatment of arrhythmogenic right ventricular cardiomyopathy[J]. Journal of Clinical Internal Medicine, 2023, 40(3): 207-209.
[3]	黄小芳, 张淑芳, 许强宏, 等. 致心律失常性右心室心肌病进展[J]. 中华急诊医学杂志, 2018, 27(11): 1307-1310.
	Huang X F, Zhang S F, Xu Q H, et al. The advance in arrhythmogenic right ventricular cardiomyopathy[J]. Chinese Journal of Emergency Medicine, 2018, 27(11): 1307-1310.
[4]	王继超, 陈义汉. 桥粒蛋白PKP2在心律失常性心肌病中的作用机制研究进展[J]. 中华心血管病杂志, 2020, 48(5): 423-428.
	Wang J C, Chen Y H. Research progress on the mechanism of desmosomal protein PKP2 in arrhythmogenic cardiomyopathy[J]. Chinese Journal of Cardiology, 2020, 48(5): 423-428.
[5]	Bao J R, Wang J Z, Yao Y, et al. Screening of pathogenic genes in Chinese patients with arrhythmogenic right ventricular cardiomyopathy[J]. Chin Med J, 2013, 126(22): 4238-4241.
[6]	Gandjbakhch E, Redheuil A, Pousset F, et al. Clinical diagnosis, imaging, and genetics of arrhythmogenic right ventricular cardiomyopathy/dysplasia: JACC state-of-the-art review[J]. J Am Coll Cardiol, 2018, 72(7): 784-804.
[7]	Gerull B, Heuser A, Wichter T, et al. Mutations in the desmosomal protein plakophilin-2 are common in arrhythmogenic right ventricular cardiomyopathy[J]. Nat Genet, 2004, 36(11): 1162-1164.
[8]	Towbin J A, McKenna W J, Abrams D J, et al. 2019 HRS expert consensus statement on evaluation, risk stratification, and management of arrhythmogenic cardiomyopathy[J]. Heart Rhythm, 2019, 16(11): e301-e372.
[9]	Corrado D, Anastasakis A, Basso C, et al. Proposed diagnostic criteria for arrhythmogenic cardiomyopathy: European Task Force consensus report[J]. Int J Cardiol, 2024, 395: 131447.
[10]	Wilde A A M, Semsarian C, Márquez M F, et al. European Heart Rhythm Association (EHRA)/Heart Rhythm Society (HRS)/Asia Pacific Heart Rhythm Society (APHRS)/Latin American Heart Rhythm Society (LAHRS) Expert Consensus Statement on the state of genetic testing for cardiac diseases[J]. Europace, 2022, 24(8): 1307-1367.
[11]	王秋菊, 沈亦平, 邬玲仟, 等. 遗传变异分类标准与指南[J]. 中国科学: 生命科学, 2017, 47(6): 1-21.
	Wang Q J, Shen Y P, Wu L Q, et al. Standards and guidelines for the interpretation of sequence variants[J]. Science China Life Sciences, 2017, 47(6): 1-21.
[12]	中华医学会心血管病学分会, 中华心血管病杂志编辑委员会, 中国医师协会医学遗传医师分会. 遗传性心血管疾病基因检测与遗传咨询中国专家共识[J]. 中华心血管病杂志, 2024, 52(7): 745-767.
	Chinese Society of Cardiology, Chinese Journal of Cardiology Editorial Board, Chinese Medical Doctor Association Medical Genetic Physician Branch. Chinese expert consensus on genetic testing and genetic counseling for inherited cardiovascular diseases[J]. Chinese Journal of Cardiology, 2024, 52(7): 745-767.
[13]	Qiu X L, Liu W L, Hu D Y, et al. Mutations of plakophilin-2 in Chinese with arrhythmogenic right ventricular dysplasia/cardiomyopathy[J]. Am J Cardiol, 2009, 103(10): 1439-1444.
[14]	Cerrone M, Montnach J, Lin X M, et al. Plakophilin-2 is required for transcription of genes that control calcium cycling and cardiac rhythm[J]. Nat Commun, 2017, 8(1): 106.
[15]	Grossmann K S, Grund C, Huelsken J, et al. Requirement of plakophilin 2 for heart morphogenesis and cardiac junction formation[J]. J Cell Biol, 2004, 167(1): 149-160.
[16]	Kircher D, Amodeo G, Cukierman D S, et al. Arrhythmogenic right ventricular cardiomyopathy-associated mutations in the plakophilin-2 gene: a structural and computational analysis[J]. Mol Med Rep, 2015, 12(3): 3921-3928.
[17]	Groeneweg J A, van der Zwaag P A, Oldenburg R A, et al. Compound heterozygous PKP2 mutations in arrhythmogenic cardiomyopathy[J]. J Cardiovasc Transl Res, 2015, 8(7): 424-432.
[18]	Biernacka E K, Borowiec K, Franaszczyk M, et al. Pathogenic variants in plakophilin-2 gene (PKP2) are associated with better survival in arrhythmogenic right ventricular cardiomyopathy[J]. J Appl Genet, 2021, 62(4): 613-620.
[19]	Syrris P, Ward D, Asimaki A, et al. Clinical expression of plakophilin-2 mutations in familial arrhythmogenic right ventricular cardiomyopathy[J]. Circulation, 2006, 113(3): 356-364.
[20]	Dalal D, James C, Devanagondi R, et al. Penetrance of mutations in plakophilin-2 among families with arrhythmogenic right ventricular dysplasia/cardiomyopathy[J]. J Am Coll Cardiol, 2006, 48(7): 1416-1424.
[21]	Christensen A H, Platonov P G, Jensen H K, et al. Genotype-phenotype correlation in arrhythmogenic right ventricular cardiomyopathy-risk of arrhythmias and heart failure[J]. J Med Genet, 2022, 59(9): 858-864.
[22]	Bao J R, Wang J Z, Yao Y, et al. Correlation of ventricular arrhythmias with genotype in arrhythmogenic right ventricular cardiomyopathy[J]. Circ Cardiovasc Genet, 2013, 6(6): 552-556.
[23]	Jain R, Dalal D, Daly A, et al. Electrocardiographic features of arrhythmogenic right ventricular dysplasia[J]. Circulation, 2009, 120(6): 477-487.
[24]	Dalal D, Molin L H, Piccini J, et al. Clinical features of arrhythmogenic right ventricular dysplasia/cardiomyopathy associated with mutations in plakophilin-2[J]. Circulation, 2006, 113(13): 1641-1649.
[25]	Muller S A, Bertoli G, Wang J N, et al. Arrhythmogenic cardiomyopathy: towards genotype based diagnoses and management[J]. J Cardiovasc Electrophysiol, 2025, 36(10): 2662-2670.
