COL12A作为一种新型的胰腺导管腺癌血清诊断标志物的鉴定与评价

doi:10.3969/j.issn.1674-8115.2025.10.009

摘要/Abstract

摘要：

目的·识别并评估用于诊断胰腺导管腺癌（pancreatic ductal adenocarcinoma，PDAC）的新型且可靠的非侵入性血清生物标志物。方法·收集2018年5月至2019年12月在上海交通大学医学院附属瑞金医院胰腺疾病诊疗中心招募的67例PDAC患者（Ruijin cohort Ⅰ）的肿瘤组织和匹配的癌旁正常组织，进行全蛋白质组学分析。利用生物信息学方法分析蛋白质组学数据来识别新的生物标志物，并应用受试者工作特征（receiver operating characteristic，ROC）曲线及曲线下面积（area under the curve，AUC）评价其诊断价值。下载并分析临床蛋白质组肿瘤分析联盟（Clinical Proteomic Tumor Analysis Consortium，CPTAC）发布的PDAC蛋白质组学及其mRNA数据。2021年6月至2022年6月招募47例PDAC患者和75例健康人（Ruijin cohort Ⅱ）开展病例对照研究。收集患者及健康人血清，应用酶联免疫吸附试验（enzyme-linked immunosorbent assay，ELISA）检测血清中新生物标志物的表达水平，评价新生物标志物的血清学诊断价值。结果·蛋白质组学数据的差异表达分析显示，胶原蛋白Ⅻ型α1链（collagen type Ⅻ α1 chain，COL12A1）为PDAC诊断的候选标志物，并且公共数据库CPTAC队列分析证实其在肿瘤组织中的表达高于正常邻近组织。COL12A1蛋白在PDAC患者血清中的表达显著高于健康人血清。其鉴别PDAC患者与健康人的AUC为0.82，敏感度为81%，特异度为83%。ROC曲线分析显示，COL12A1辅助糖类抗原199（carbohydrate antigen 199，CA199）鉴别PDAC患者与健康人的AUC显著高于单独使用CA199（AUC_CA199=0.91 vs AUC_{CA199 + COL12A1}=0.95，P<0.05）。此外，COL12A1有较高的能力鉴别早期PDAC患者（Ⅰ~Ⅱ期）与健康人（AUC=0.83），并且COL12A1联合CA199鉴别早期PDAC的AUC显著高于单独使用CA199（AUC_CA199=0.92 vs AUC_{CA199 + COL12A1}=0.97，P<0.05）。结论·COL12A1是一种潜在的PDAC血清学诊断标志物，能够与CA199联合用于检测早期PDAC。

关键词: 胰腺导管腺癌, 胶原蛋白Ⅻ型α1链, 糖类抗原199, 诊断, 蛋白质组学

Abstract:

Objective ·To identify and evaluate novel and reliable non-invasive serological biomarkers for detecting pancreatic ductal adenocarcinoma (PDAC). Methods ·Sixty-seven PDAC patients (Ruijin cohort Ⅰ) were recruited at Pancreatic Center, Ruijin Hospital, Shanghai Jiao Tong University School of Medicine, from May 2018 to December 2019. Global proteome profiling of 67 PDAC tumor tissues and 67 matched adjacent normal tissues was performed using mass spectrum. Bioinformatics analysis on the proteomics data was conducted to identify new biomarkers, and receiver operating characteristic (ROC) curves and the area under the curve (AUC) were used to evaluate their value of detecting PDAC. The proteomic and mRNA sequencing data were further downloaded and analysed from the Clinical Proteomic Tumor Analysis Consortium (CPTAC) cohort for validation. In addition, the Ruijin Cohort Ⅱ, consisting of 47 PDAC patients and 75 healthy individuals, was recruited for a case-control study from June 2021 to June 2022. Enzyme-linked immunosorbent assay (ELISA) was used to detect the expression level of new biomarkers in the serum of patients and healthy individuals to evaluate the serological diagnostic values of them. Results ·Collagen type Ⅻ α1 chain (COL12A1) was identified as a candidate biomarker for PDAC diagnosis based on differential expression analysis on the proteomic data and was validated to be higher in tumor tissues than in adjacent normal tissues in the CPTAC cohort. In addition, COL12A1 protein levels were significantly higher in the sera of PDAC patients than in those of healthy controls, showing good diagnostic performance with an AUC of 0.82, a sensitivity of 81%, and a specificity of 83%. ROC analysis revealed that COL12A1 improved the performance of carbohydrate antigen 199 (CA199) in distinguishing PDAC patients from healthy individuals (AUC_CA199=0.91 vs AUC_{CA199 +COL12A1}=0.95, P<0.05). Furthermore, COL12A1 also showed excellent ability to distinguish early-stage PDAC patients (stage Ⅰ‒Ⅱ) from healthy individuals (AUC_COL12A1=0.83), and significantly improved the AUC of CA199 in early-stage PDAC patients (AUC_CA199=0.92 vs AUC_{CA199+COL12A1}=0.97, P<0.05). Conclusion ·COL12A1 is a potential serological diagnostic marker that complements CA199 in detecting early-stage PDAC.

Key words: pancreatic ductal adenocarcinoma (PDAC), collagen type Ⅻ α1 chain (COL12A1), carbohydrate antigen 199 (CA199), diagnosis, proteome

中图分类号:

R735.9

刘佳, 任灵杰, 施敏敏, 唐笑梅, 马芳芳, 秦洁洁. COL12A作为一种新型的胰腺导管腺癌血清诊断标志物的鉴定与评价[J]. 上海交通大学学报（医学版）, 2025, 45(10): 1342-1352.

LIU Jia, REN Lingjie, SHI Minmin, TANG Xiaomei, MA Fangfang, QIN Jiejie. Identification and evaluation of COL12A1 as a novel serological diagnostic marker in pancreatic ductal adenocarcinoma[J]. Journal of Shanghai Jiao Tong University (Medical Science), 2025, 45(10): 1342-1352.

图/表 6

表1 本研究中各队列的基本特征

Tab 1 Basic characteristics of the cohorts in the study

Characteristic	Ruijin cohort Ⅰ (n=67)	CPTAC cohort (n=135)	Ruijin cohort Ⅱ			P₂ value^②	P₃ value^③	P₄ value^④
Characteristic	Ruijin cohort Ⅰ (n=67)	CPTAC cohort (n=135)	PDAC (n=47)	Normal (n=75)	P₁ value^①	P₂ value^②	P₃ value^③	P₄ value^④
Age/year	63 (56, 67)	65 (60, 71)	67 (56, 71)	64 (56, 69)	0.317	0.058	0.054	0.375
Gender/n(%)					0.634	0.331	0.810	0.280
Female	33 (49.3)	64 (47.4)	20 (42.6)	37 (49.3)
Male	34 (50.7)	71 (52.6)	27 (57.4)	38 (50.7)
Race/n(%)					‒	<0.001	<0.001	<0.001
Black	0 (0)	2 (1.5)	0 (0)	0 (0)
White	0 (0)	30 (22.2)	0 (0)	0 (0)
Yellow	67 (100)	0 (0)	47 (100)	75 (100)
NA	0 (0)	103 (76.3)	0 (0)	0 (0)
TNM stage/n(%)					‒	<0.001	<0.001	0.380
Ⅰ	20 (29.9)	23 (17.0)	5 (10.6)	‒
Ⅱ	47 (70.1)	56 (41.5)	17 (36.2)	‒
Ⅲ	0 (0)	41 (30.4)	18 (38.3)	‒
Ⅳ	0 (0)	9 (6.7)	7 (14.9)	‒
NA	0 (0)	6 (4.4)	0 (0)	‒
T stage/n(%)					‒	0.185	0.120	0.720
T1	10 (14.9)	10 (7.4)	4 (8.5)	‒
T2	20 (29.9)	83 (61.5)	20 (42.6)	‒
T3	37 (55.2)	39 (28.9)	7 (14.9)	‒
T4	0 (0)	1 (0.7)	16 (34.0)	‒
TX	0 (0)	2 (1.5)	0 (0)	‒
N stage/n(%)					‒	<0.001	<0.001	0.043
N0	44 (65.7)	30 (22.2)	12 (25.5)	‒
N1	23 (34.3)	51 (37.8)	18 (38.3)	‒
N2	0 (0)	46 (34.1)	14 (29.8)	‒
NX	0 (0)	8 (5.9)	3 (6.4)	‒
M stage/n(%)					‒	<0.001	<0.001	0.001
M0	67 (100)	88 (65.2)	40 (85.1)	‒
M1	0 (0)	8 (5.9)	7 (14.9)	‒
MX	0 (0)	39 (28.9)	0 (0)	‒

图1 通过Ruijin cohort Ⅰ中PDAC肿瘤组织和癌旁组织的全蛋白质组学分析鉴定出COL12A1Note： A. PCA of proteomic data from 134 samples (67 tumor tissues vs 67 adjacent normal tissues). Each dot represents one sample, with red dots indicating tumor samples and blue dots indicating adjacent normal tissues. B. Volcano plot of differentially expressed proteins between tumor and adjacent normal tissues. Each dot represents one protein, with red dots indicating significantly upregulated proteins in tumors and blue dots indicating significantly downregulated proteins. FC—fold change. C. Pathway enrichment analysis identified based on significantly up/down-regulated proteins created by xEnrichCompare from XGR version 1.1.8. D. Boxplot of COL12A1 abundance in the Ruijin cohort Ⅰ. T—tumor; N—normal. E. ROC curve of COL12A1 for discriminating PDAC tumor tissues from adjacent normal tissues in the Ruijin cohort Ⅰ.

Fig 1 Identificating COL12A1 from global proteomic profiling of PDAC tumor tissues and adjacent normal tissues in the Ruijin cohort Ⅰ

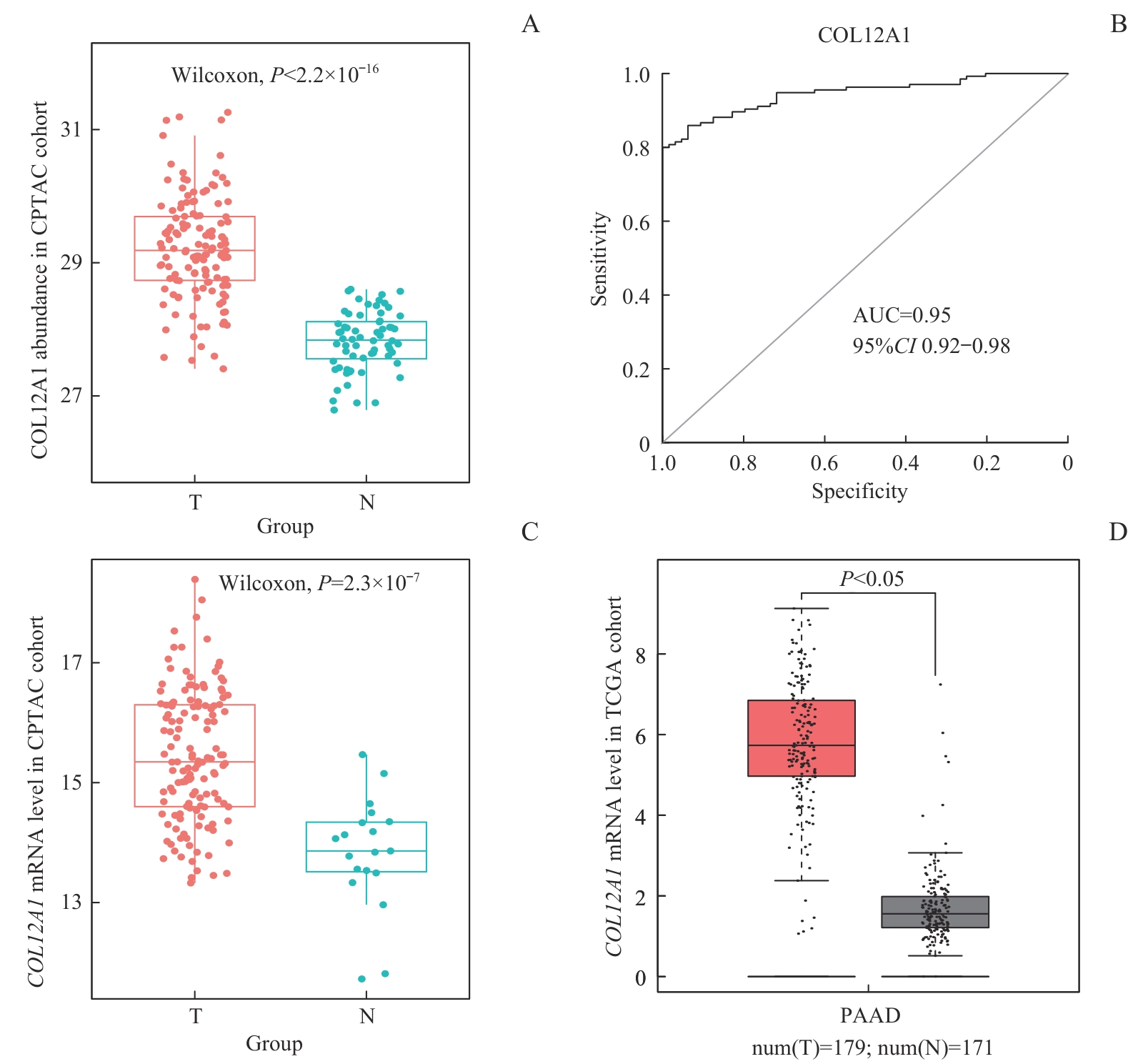

图2 CPTAC队列和TCGA队列中PDAC肿瘤和正常组织中COL12A1蛋白和mRNA的表达水平Note： A. Box plot showing COL12A1 protein abundance in the CPTAC cohort. B. ROC curve of COL12A1 protein for distinguishing PDAC from adjacent normal tissues in the CPTAC cohort. C. Box plot showing COL12A1 mRNA expression in the CPTAC cohort. D. Box plot showing COL12A1 mRNA expression in the TCGA cohort (generated using the online tool GEPIA). T—tumor; N—normal.

Fig 2 Expression levels of COL12A1 protein and mRNA in PDAC and adjacent normal tissues in the CPTAC and TCGA cohorts

图 3 Ruijin cohort Ⅱ中COL12A1和CA199蛋白鉴别PDAC和健康人血清的表现Note： A/B. Box plots showing the serum levels of COL12A1 (A) and CA199 (B) in PDAC patients and healthy individuals in the Ruijin cohort Ⅱ. C. ROC curves of COL12A1, CA199, and their combination for distinguishing PDAC from normal human sera in the Ruijin cohort Ⅱ. The optimal cut-off values are labeled by dots on the ROC curves. The numbers outside the parenthesis represent the optimal cut-off values, while those inside the parentheses represent specificity and sensitivity, respectively. D. Boxplots of the positive rates of COL12A1, CA199, and their combination in the Ruijin cohort Ⅱ. NHS—normal human sera.

Fig 3 Diagnostic performance of COL12A1 and CA199 proteins in distinguishing PDAC from normal human sera in the Ruijin cohort Ⅱ

表2 COL12A1辅助CA199诊断PDAC的价值

Tab 2 Complementary diagnostic value of COL12A1 to CA199 in the diagnosis of PDAC

Item	AUC	95%CI	Accuracy/%	κ value	Sensitivity/%	Specificity/%
All PDAC vs NHS
COL12A1	0.82	0.74‒0.90	82	0.63	81	83
CA199	0.91	0.85‒0.96	88	0.75	89	87
COL12A1+CA199	0.95	0.91‒0.99	92	0.83	94	91
PDAC (Ⅰ‒Ⅱ stage) vs NHS
COL12A1	0.83	0.75‒0.92	81	0.53	77	83
CA199	0.92	0.86‒0.97	88	0.69	91	87
COL12A1+CA199	0.97	0.93‒0.99	92	0.79	95	91
PDAC (T1-T2 stage) vs NHS
COL12A1	0.85	0.77‒0.93	83	0.59	83	83
CA199	0.93	0.88‒0.98	89	0.73	96	87
COL12A1+CA199	0.98	0.96‒1.00	92	0.80	96	91
PDAC (N0 stage) vs NHS
COL12A1	0.84	0.75‒0.94	83	0.48	83	83
CA199	0.92	0.86‒0.98	91	0.60	92	87
COL12A1+CA199	0.97	0.94‒1.00	92	0.73	100	91
PDAC (well-differentiated) vs NHS
COL12A1	0.80	0.69‒0.91	82	0.54	80	83
CA199	0.89	0.79‒0.98	87	0.67	90	87
COL12A1+CA199	0.94	0.85‒1.00	91	0.74	90	91

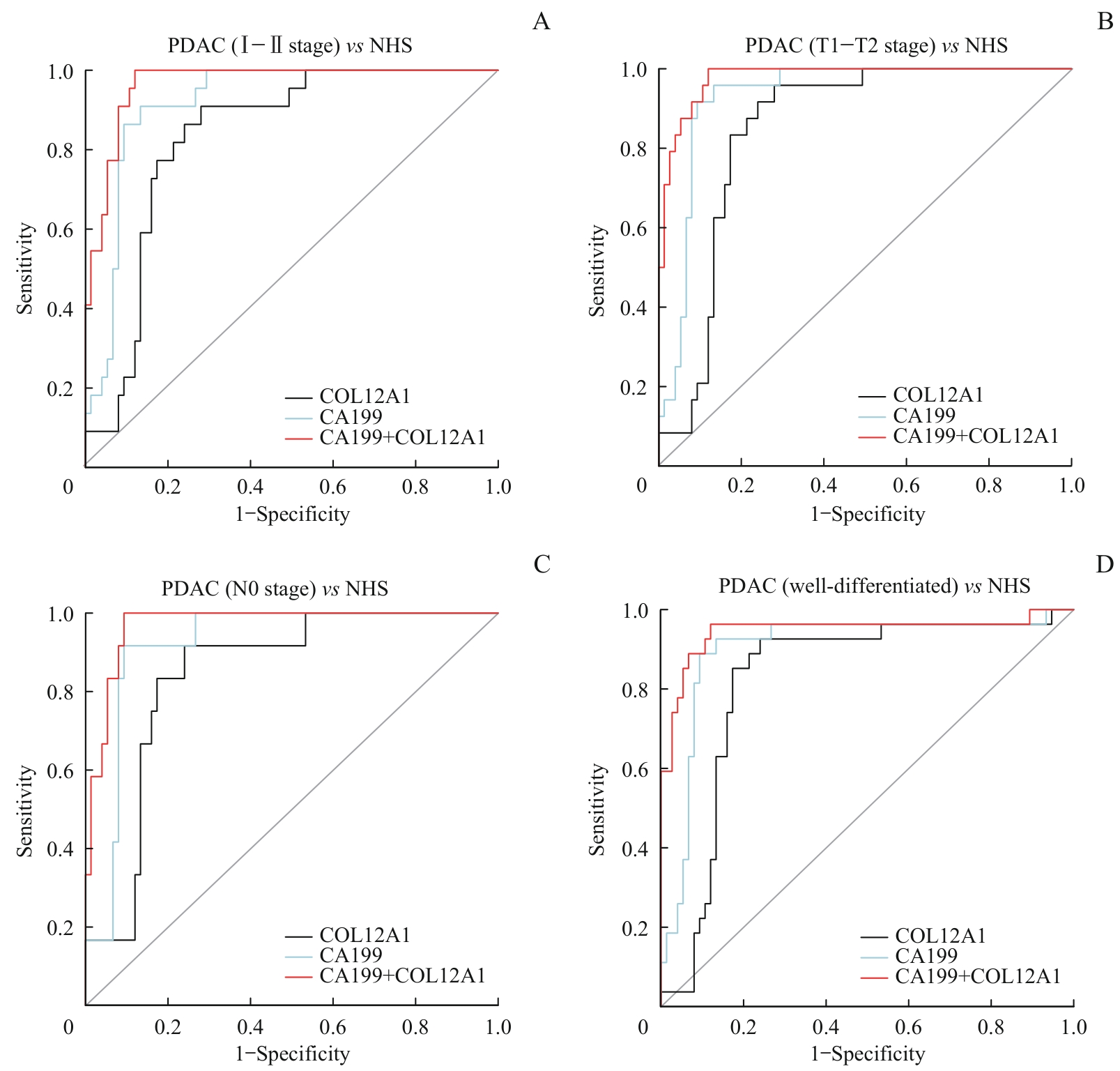

图4 基于TNM分期、分化程度、T分期和N分期，COL12A1、CA199及其组合在PDAC患者亚组中的诊断价值Note： A. ROC curves of COL12A1, CA199, and their combination for distinguishing early-stage PDAC (Ⅰ‒Ⅱ stage) from healthy individuals. B. ROC curves of COL12A1, CA199, and their combination for distinguishing PDAC (T1‒T2 stage) from healthy individuals. C. ROC curves of COL12A1, CA199, and their combination for distinguishing early PDAC (N0 stage) from healthy individuals. D. ROC curves of COL12A1, CA199, and their combination for distinguishing PDAC (well-differentiated) from healthy individuals.

Fig 4 Diagnostic performance of COL12A1, CA199, and their combination in the subgroups of PDAC patients based on TNM stage, differentiation, T stage, and N stage

参考文献 36

[1]	SUNG H, FERLAY J, SIEGEL R L, et al. Global cancer statistics 2020: globocan estimates of incidence and mortality worldwide for 36 cancers in 185 countries[J]. CA Cancer J Clin, 2021, 71(3): 209-249.
[2]	RYAN D P, HONG T S, BARDEESY N. Pancreatic adenocarcinoma[J]. N Engl J Med, 2014, 371(11): 1039-1049.
[3]	佟陈昀颢. 中国大陆地区胰腺癌回顾性临床流行病学研究[D]. 北京: 北京协和医学院, 2024.
	TONG C Y H. A retrospective clinical epidemiology study of pancreatic cancer in mainland China[D]. Beijing: Peking Union Medical College, 2024.
[4]	MIZRAHI J D, SURANA R, VALLE J W, et al. Pancreatic cancer[J]. Lancet, 2020, 395(10242): 2008-2020.
[5]	胡斌, 宋少莉. 胰腺癌的治疗进展[J]. 上海交通大学学报(医学版), 2015, 35(3): 445-449.
	HU B, Song S L. Progresses of treatment of pancreatic cancer[J]. Journal of Shanghai Jiao Tong University (Medical Science), 2015, 35(3): 445-449.
[6]	LUO G P, JIN K Z, DENG S M, et al. Roles of CA19-9 in pancreatic cancer: biomarker, predictor and promoter[J]. Biochim Biophys Acta Rev Cancer, 2021, 1875(2): 188409.
[7]	BOYD L N C, ALI M, COMANDATORE A, et al. Prediction model for early-stage pancreatic cancer using routinely measured blood biomarkers[J]. JAMA Netw Open, 2023, 6(8): e2331197.
[8]	HICKS D, FARSANI G T, LAVAL S, et al. Mutations in the collagen Ⅻ gene define a new form of extracellular matrix-related myopathy[J]. Hum Mol Genet, 2014, 23(9): 2353-2363.
[9]	ZHANG Y P, WANG H X, GAO Z C, et al. COL12A1 promotes osteosarcoma progression via the FAK/PI3K/AKT/mTOR pathway[J]. Curr Mol Med, 2024. DOI:10.2174/0115665240322280240903111159.
[10]	YAN Y L, LIANG Q J, LIU Y H, et al. COL12A1 as a prognostic biomarker links immunotherapy response in breast cancer[J]. Endocr Relat Cancer, 2023, 30(5): e230012.
[11]	张文姣. COL12A1在胰腺癌中的表达与临床病理特征及预后的关系[D]. 青岛: 青岛大学, 2024.
	ZHANG W J. The expression of COL12A1 in pancreatic cancer and its relationship with clinicopathological features and prognosis[D]. Qingdao: Qingdao University, 2024.
[12]	KRUG K, JAEHNIG E J, SATPATHY S, et al. Proteogenomic landscape of breast cancer tumorigenesis and targeted therapy[J]. Cell, 2020, 183(5): 1436-1456.e31.
[13]	JIANG L X, QIN J J, DAI Y T, et al. Prospective observational study on biomarkers of response in pancreatic ductal adenocarcinoma[J]. Nat Med, 2024, 30(3): 749-761.
[14]	RITCHIE M E, PHIPSON B, WU D, et al. Limma powers differential expression analyses for RNA-sequencing and microarray studies[J]. Nucleic Acids Res, 2015, 43(7): e47.
[15]	FANG H, KNEZEVIC B, BURNHAM K L, et al. XGR software for enhanced interpretation of genomic summary data, illustrated by application to immunological traits[J]. Genome Med, 2016, 8(1): 129.
[16]	DELONG E R, DELONG D M, CLARKE-PEARSON D L. Comparing the areas under two or more correlated receiver operating characteristic curves: a nonparametric approach[J]. Biometrics, 1988, 44(3): 837-845.
[17]	CAO L W, HUANG C, ZHOU D C, et al. Proteogenomic characterization of pancreatic ductal adenocarcinoma[J]. Cell, 2021, 184(19): 5031-5052.e26.
[18]	AMIN M B, EDGE S, GREENE F L. AJCC cancer staging manual[M]. 8th ed. New York: Springer, 2017: 327-335.
[19]	DOU Y C, KATSNELSON L, GRITSENKO M A, et al. Proteogenomic insights suggest druggable pathways in endometrial carcinoma[J]. Cancer Cell, 2023, 41(9): 1586-1605.e15.
[20]	李宝宝. 基于蛋白质组学技术筛选脑膜瘤诊断的血清学潜在生物标志物的研究[D]. 延安: 延安大学, 2022.
	LI B B. Screening serological diagnosis of meningioma based on proteomic techniques studies on potential biomarkers[D]. Yan'an: Yan'an University, 2022.
[21]	GERECKE D R, OLSON P F, KOCH M, et al. Complete primary structure of two splice variants of collagen Ⅻ, and assignment of alpha 1 (Ⅻ) collagen (COL12A1), alpha 1 (Ⅸ) collagen (COL9A1), and alpha 1 (ⅩⅨ) collagen (COL19A1) to human chromosome 6q12-q13[J]. Genomics, 1997, 41(2): 236-242.
[22]	XU S S, XU H X, WANG W Q, et al. The role of collagen in cancer: from bench to bedside[J]. J Transl Med, 2019, 17(1): 309.
[23]	TIAN C X, HUANG Y, CLAUSER K R, et al. Suppression of pancreatic ductal adenocarcinoma growth and metastasis by fibrillar collagens produced selectively by tumor cells[J]. Nat Commun, 2021, 12(1): 2328.
[24]	GELSE K, PÖSCHL E, AIGNER T. Collagens: structure, function, and biosynthesis[J]. Adv Drug Deliv Rev, 2003, 55(12): 1531-1546.
[25]	NISSEN N I, KARSDAL M, WILLUMSEN N. Collagens and cancer associated fibroblasts in the reactive stroma and its relation to cancer biology[J]. J Exp Clin Cancer Res, 2019, 38(1): 115.
[26]	THORLACIUS-USSING J, JENSEN C, MADSEN E A, et al. Type ⅩⅩ collagen is elevated in circulation of patients with solid tumors[J]. Int J Mol Sci, 2022, 23(8): 4144.
[27]	WILLUMSEN N, ALI S M, LEITZEL K, et al. Collagen fragments quantified in serum as measures of desmoplasia associate with survival outcome in patients with advanced pancreatic cancer[J]. Sci Rep, 2019, 9(1): 19761.
[28]	SONG Y, WANG L, WANG K D, et al. COL12A1 acts as a novel prognosis biomarker and activates cancer-associated fibroblasts in pancreatic cancer through bioinformatics and experimental validation[J]. Cancers (Basel), 2023, 15(5): 1480.
[29]	WERNER S, CHEN H D, TAO S, et al. Systematic review: serum autoantibodies in the early detection of gastric cancer[J]. Int J Cancer, 2015, 136(10): 2243-2252.
[30]	PEPE M S, ETZIONI R, FENG Z, et al. Phases of biomarker development for early detection of cancer[J]. J Natl Cancer Inst, 2001, 93(14): 1054-1061.
[31]	SONG J, SOKOLL L J, PASAY J J, et al. Identification of serum biomarker panels for the early detection of pancreatic cancer[J]. Cancer Epidemiol Biomarkers Prev, 2019, 28(1): 174-182.
[32]	李祥苏, 王冬冬, 吴旭东. 血清MUC5AC和CA199联合检测在胰腺癌诊断中的作用[J]. 现代肿瘤医学, 2022, 30(5): 852-855.
	LI X S, WANG D D, WU X D. Evaluation of serum MUC5AC in combination with CA199 for the diagnosis of pancreatic cancer[J]. Journal of Modern Oncology, 2022, 30(5): 852-855.
[33]	KIM J, BAMLET W R, OBERG A L, et al. Detection of early pancreatic ductal adenocarcinoma with thrombospondin-2 and CA19-9 blood markers[J]. Sci Transl Med, 2017, 9(398): eaah5583.
[34]	LEI X F, JIA S Z, YE J, et al. Application values of detection of serum CA199, CA242 and CA50 in the diagnosis of pancreatic cancer[J]. J Biol Regul Homeost Agents, 2017, 31(2): 383-388.
[35]	DONG D, JIA L, ZHANG L F, et al. Periostin and CA242 as potential diagnostic serum biomarkers complementing CA19.9 in detecting pancreatic cancer[J]. Cancer Sci, 2018, 109(9): 2841-2851.
[36]	HUANG B W, HUANG H R, ZHANG S T, et al. Artificial intelligence in pancreatic cancer[J]. Theranostics, 2022, 12(16): 6931-6954.
